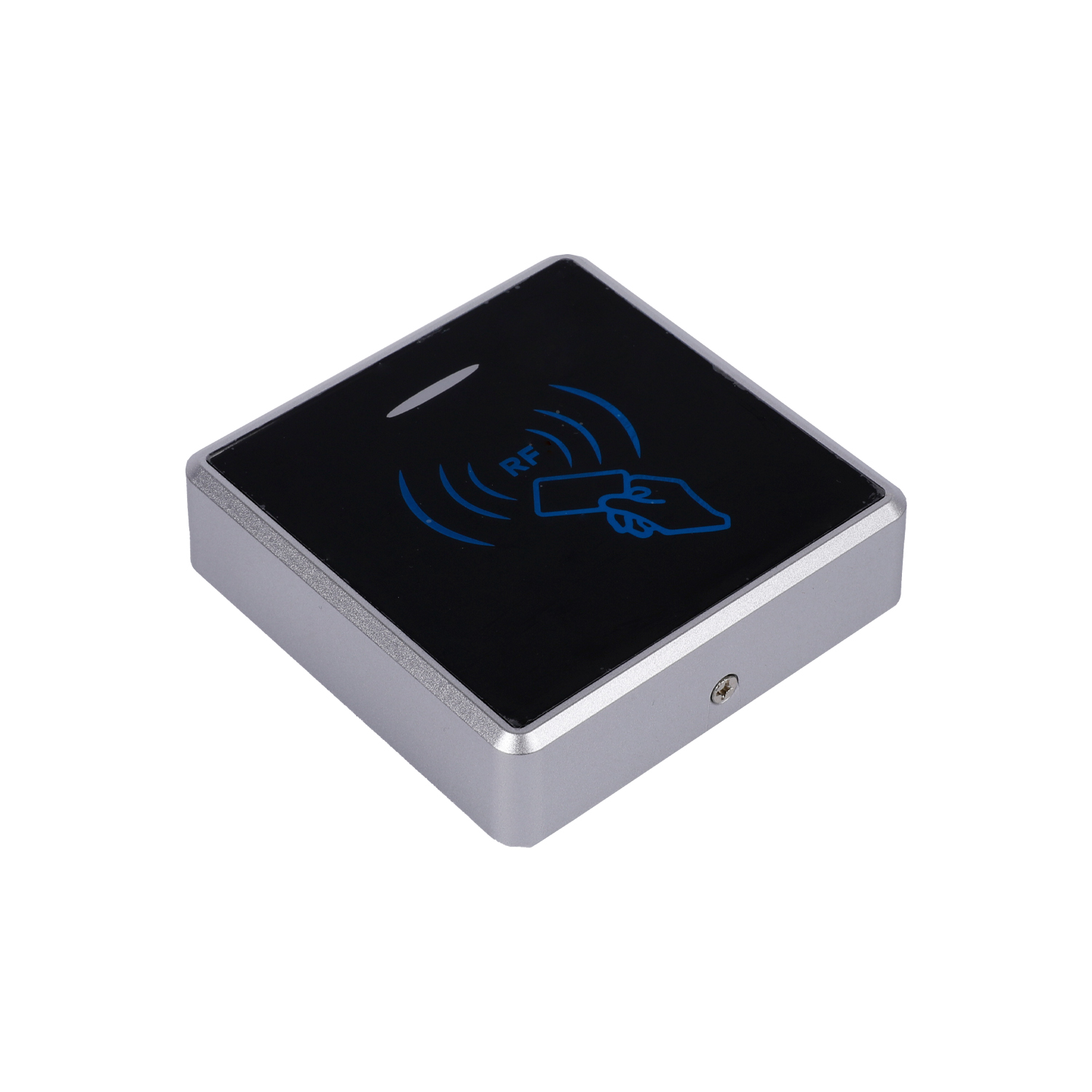

Anti-copy ID Card Reader
Technical Parameters：
| Type | Anti-copy card ID card |
| Card reader output | Wiegand 26/34 |
| Operating voltage | DC9-12V |
| Quiescent Current | ≤100mA |
| Reading distance | 2-8m |
| Temperature | -20~50℃ |
| Humidity | 10%-90%RH |
| Size | 86*86cm |
Interface Description：
| 1 | Red | DC+12V Input |
| 2 | Black | GND Power Ground |
| 3 | Green | Wiegand D0 |
| 4 | White | Wiegand D1 |
| 5 | Yellow | Control LED indicator |
| 6 | Blue | Control buzzer |
| 7 | Brown | WG26/34 Optional,Do not connect output WG26,connect with output WG34 |
Wiegand output mode setting：
Select Wiegand output mode via brown wire：
The brown wire is not connected, and the Wiegand 26 signal is output (it is recommended to cut it off when the brown wire is not connected)；
Brown wire is ground wire, outputs Wiegand 34 signal
